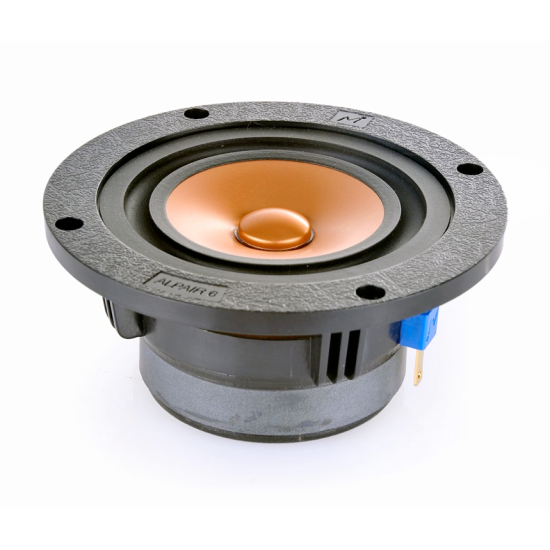

Markaudio Alpair 6M
- Stock: Discontinued
- Model: Alpair 6M
Unavailable
The Alpair 6M is well suited to smaller audio applications, particularly desk-top and near-
field uses. The bass-rich warm tone of this driver can act a balance for those installations
using compressed or highly processed source music, complements the use of traditional
and modern solid state amplification.This new generation 2 model concentrates on refining
the musicality of the Alpair 6 heritage.
This new generation 2 driver has a new Multi-form cone design. The cone profile has been
modified to improve vocal clarity in the lower/lower mid frequency ranges. New advanced
Nomex rear suspension and a new low mass copper wound coil is also included in this
design. Other additional features include a revision of the polymer mix for the frame making
it 10% stiffer than the old model. Finally , new connector sets allow for remote soldering of
cables, installation is easy.
| Alpair 6M | |
| Driver | 4.0 Ohm |
| Revc | 3.60 Ohm |
| Fo | 63 Hz |
| Sd | 36.3 Cm2 |
| Vas | 4.8 Ltr |
| Cms | 2.58 m M/N |
| Mmd | 2.48 g |
| Mms | 2.57 g |
| BL | 2.81 T·M |
| Qms | 2.76 |
| Qes | 0.45 |
| Qts | 0.38 |
| Levc | 128.7 uH |
| No | 0.243 % |
| SPLo | 85.4 dB |
| Xmax | 4 mm (1 way) |
| Power | 15 watts nom. 30 Max |
| Coil | 18-mm dia. Alu-copper |
| Speaker Specifications | |
| Nominal Size (mm) | 60 |
| Nominal Impedance (Ohms) | 4 |
| Power Rating (W) | 15 |
| Sensitivity 1W/1M (dB) | 85.4 |
| Resonant Frequency (Hz) | 63 |
| Qts | 0.38 |
| Qms | 2.76 |
| Qes | 0.45 |
| Vas (Litres) | 4.8 |
| Re (Ohms) | 3.6 |
| Xmax (mm) | 4 |
| Freq Response Min (hz) | 75 |
| Freq Response Max (hz) | 20000 |
